Canadian Solar 660w Bifacial EV02.

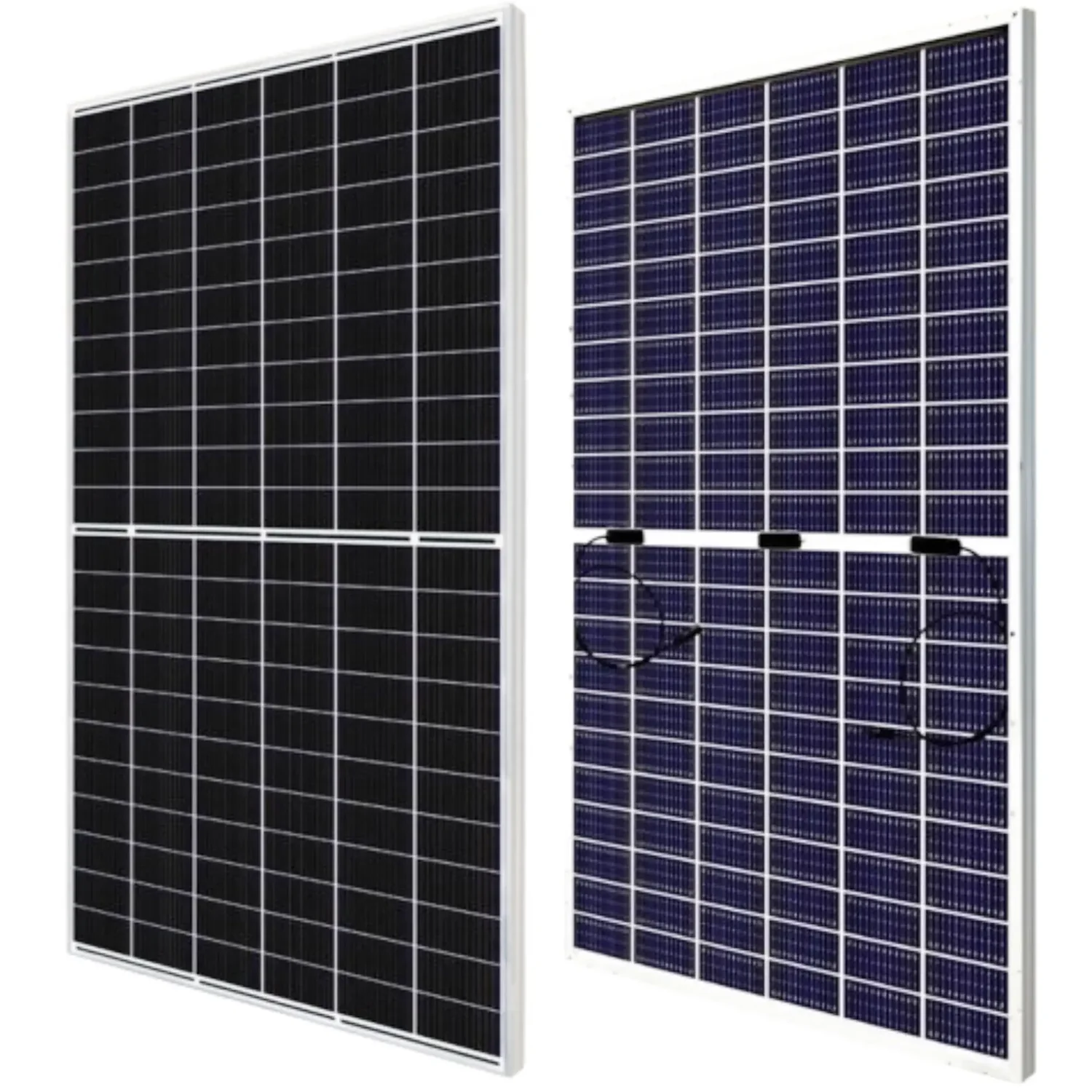

CSI 660W Bifacial Solar Panel (CS7N-660MB-AG) EV02
The CS7N-660MB-AG EV02 by Canadian Solar is a next-generation bifacial module designed for high-performance solar installations. With a front-side power output of 660W and cutting-edge monocrystalline PERC cell technology, this EV02 version enhances energy generation with improved rear-side gain and optimized efficiency in large-scale commercial or utility settings.

Its robust dual-glass design offers long-term durability, superior fire resistance, and excellent low-light performance, making it ideal for projects seeking maximum yield and reliability.

Key Specifications:

• Power Output: 660W (front side)

• Module Efficiency: ~21.6%

• Cell Type: Monocrystalline PERC, 210 mm

• Technology: Bifacial with glass-glass construction (EV02 version)

• Rear-Side Gain: Up to 30% additional power depending on albedo

• Dimensions: 2384 × 1303 × 35 mm

• Weight: ~35.5 kg

• Glass: Dual 2.0 mm tempered glass

• Frame: Anodized aluminum alloy

• Connector Type: EVO2 (MC4-compatible)

• Operating Temperature: -40°C to +85°C

• Certifications: IEC 61215, IEC 61730, UL 61730

With excellent mechanical strength and improved energy yield from both sides, the CS7N-660MB-AG EV02 is built to deliver long-term value and outstanding performance in all environmental conditions.
